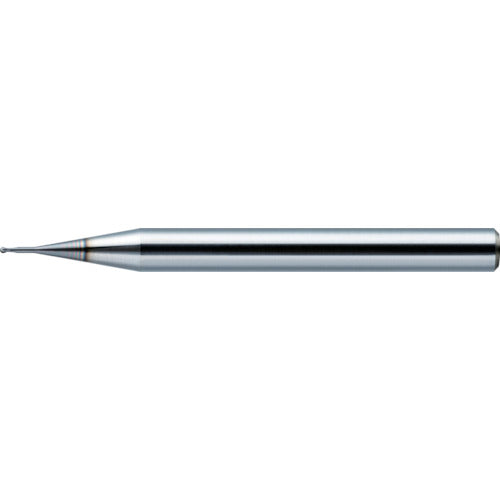

Union Tool DLCCOAT 2-blade long neck ball for copper electrode processing R0.75 x effective length 18 x blade length 1.2 x shank diameter 4 DLCLB2015-180 1 piece

Catalog number: DLCLB2015-180 Features: ● DLC coating provides excellent resistance to welding and wear. ● The blade shape is designed specifically for copper, providing an unprecedented long life. Specifications: ● Ball radius (mm): R0.75 ● Blade length (mm): 1.2 ● Overall length (mm): 55 ● Shank diameter (mm): 4 ● Number of blades (pieces): 2 ● Surface treatment: DLCCOAT ● Number of blades: 2 ● Effective length (mm): 18 ● Neck diameter (mm): 1.47 ● Twist angle: 30 ● Compatible workpiece: Copper Material/Finish: ● Super MG Caution: ● The shank taper angle is a guideline. ● If interference with the workpiece is required, be sure to measure it and check it. ● Be careful of contact between the shank and the workpiece.
