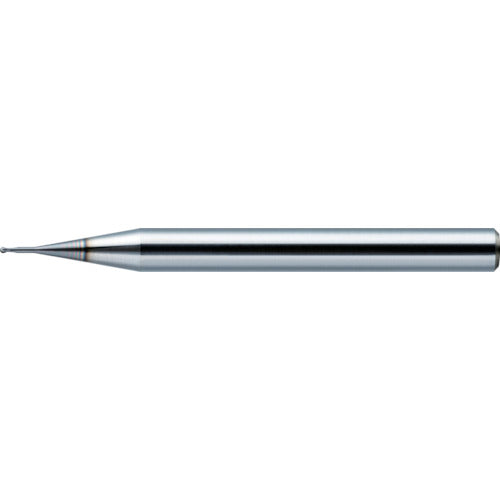

Union Tool DLCCOAT 2-blade long neck ball for copper electrode processing R1 x effective length 16 x blade length 1.6 x shank diameter 4 DLCLB2020-160 1 piece

Catalog number: DLCLB2020-160 Features: ●By adopting DLC ​​coating, excellent adhesion resistance and wear resistance have been achieved. ●By using a blade shape specifically for copper, an unprecedented long life has been achieved. Specifications: ●Ball radius (mm): R1 ●Blade length (mm): 1.6 ●Total length (mm): 50 ●Shank diameter (mm): 4 ●Number of blades (pieces): 2 ●Surface treatment: DLCCOAT ●Number of blades: 2 ●Effective length (mm): 16 ●Neck diameter (mm): 1.98 ●Twist angle: 30 ●Compatible workpiece: Copper Material/Finish: ●Super MG Caution: ●The shank taper angle is a guideline. ●If interference with the workpiece is required, be sure to measure it and check it. ●Please be careful of contact between the shank and the workpiece.
