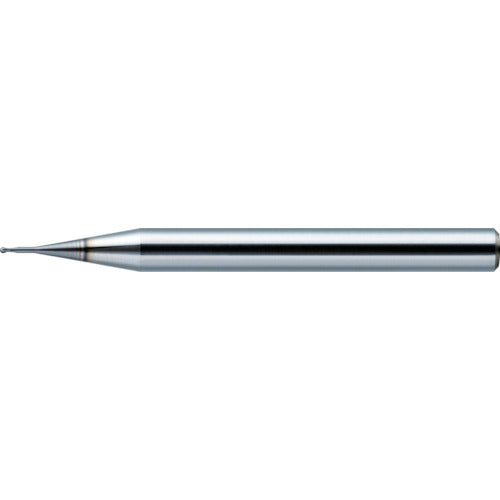

Union Tool DLCCOAT 2-blade long neck ball for copper electrode processing R1.5 x effective length 25 x blade length 2.4 x shank diameter 6 DLCLB2030-250 1 piece

Catalog number: DLCLB2030-250 Features: ● DLC coating provides excellent resistance to welding and wear. ● The blade shape is designed specifically for copper, providing an unprecedented long life. Specifications: ● Ball radius (mm): R1.5 ● Blade length (mm): 2.4 ● Total length (mm): 70 ● Shank diameter (mm): 6 ● Number of blades (pieces): 2 ● Surface treatment: DLCCOAT ● Number of blades: 2 ● Effective length (mm): 25 ● Neck diameter (mm): 2.95 ● Twist angle: 30 ● Compatible workpiece: Copper Material/Finish: ● Super MG Caution: ● The shank taper angle is a guideline. ● If interference with the workpiece is required, be sure to measure it and check it. ● Be careful of contact between the shank and the workpiece.
