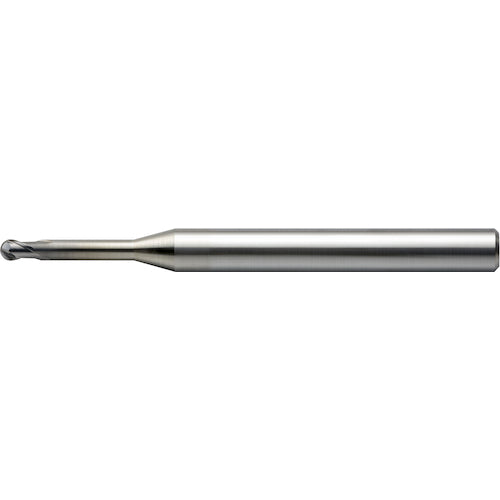

UNION TOOL HMWCOAT 2-blade long neck ball end mill HWLB ball radius R0.1 x effective length 0.5 x blade length 0.16 x neck diameter 0.19 x total length 45 HWLB2002-005 1 piece

Catalog number: HWLB2002-005 Features: *We have developed a new coating, HMWCOAT, which has improved wear resistance compared to the conventional HARDMAX coating. *The negative blade shape and new coating are particularly effective in machining around 60HRC. *The tool precision is higher than that of conventional products. Uses: ●Compatible workpiece materials: hardened steel (up to 50HRC) (up to 55HRC) (up to 60HRC) (up to 65HRC) (up to 70HRC), pre-hardened steel, carbon steel, alloy steel, cast iron, copper, titanium alloy, super heat-resistant alloy Specifications: ●Ball radius (mm): R0.1 ●Blade length (mm): 0.16 ●Total length (mm): 45 ●Shank diameter (mm): 4 ●Number of blades (pieces): 2 ●Surface treatment: HMWCOAT ●Made in an ISO9001 certified factory ●Made in an ISO14001 certified factory Material/Finish: ●Super MG Caution: ●The shank taper angle is a guideline. ●If interference with the workpiece is required, be sure to measure it and check. ●Please be careful of contact between the shank and the workpiece.
