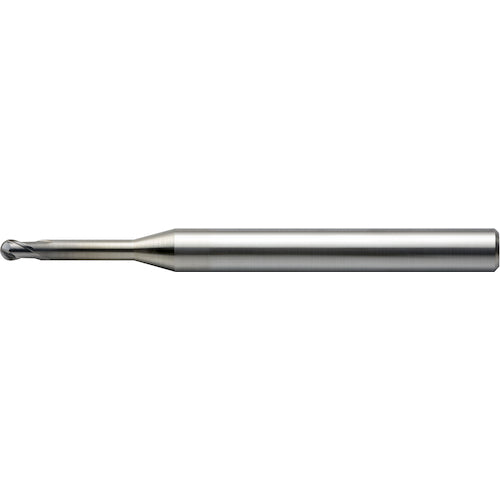

UNION TOOL HMWCOAT 2-blade long neck ball end mill HWLB ball radius R1.5 x effective length 8 x blade length 2.4 x neck diameter 2.95 x total length 60 HWLB2030-080 1 piece

Catalog number: HWLB2030-080 Features: ●We have developed a new coating, HMWCOAT, which has improved wear resistance compared to the conventional HARDMAX coating. ●The negative blade shape and new coating are particularly effective in machining around 60HRC. ●The tool precision is higher than that of conventional products. Uses: ●Compatible workpiece materials: hardened steel (up to 50HRC) (up to 55HRC) (up to 60HRC) (up to 65HRC) (up to 70HRC), pre-hardened steel, carbon steel, alloy steel, cast iron, copper, titanium alloy, super heat-resistant alloy Specifications: ●Ball radius (mm): R1.5 ●Blade length (mm): 2.4 ●Total length (mm): 60 ●Shank diameter (mm): 6 ●Number of blades (pieces): 2 ●Surface treatment: HMWCOAT ●Made in an ISO9001 certified factory ●Made in an ISO14001 certified factory Material/Finish: ●Super MG Caution: ●The shank taper angle is a guideline. ●If interference with the workpiece is required, be sure to measure it and check. ●Please be careful of contact between the shank and the workpiece.
