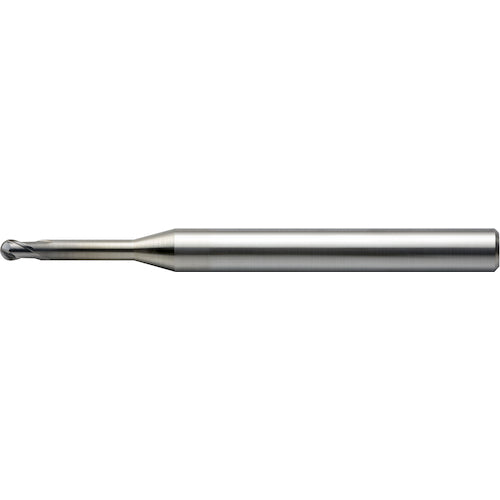

UNION TOOL HMWCOAT 2-blade long neck ball end mill for machining high hardness materials HWLB ball radius R0.3 x effective length 5 x blade length 0.48 x neck diameter 0.59 x total length 45 HWLB2006-050 1 piece

Catalog number: HWLB2006-050 Features: *We have developed a new coating, HMWCOAT, which has improved wear resistance compared to the conventional HARDMAX coating. *The negative blade shape and new coating are particularly effective in machining around 60HRC. *The tool precision is also higher than conventional products, with an outer diameter tolerance of 0/-0.006mm, R precision of ±0.003mm, and shank diameter tolerance of 0/-0.004mm (h4). Uses: ●Compatible workpiece materials: Hardened steel (up to 50HRC) (up to 55HRC) (up to 60HRC) (up to 65HRC) (up to 70HRC), pre-hardened steel, carbon steel, alloy steel, cast iron, copper, titanium alloy, super heat-resistant alloy Specifications: ●Ball radius (mm): R0.3 ●Blade length (mm): 0.48 ●Total length (mm): 45 ●Shank diameter (mm): 4 ●Number of blades (pieces): 2 ●Surface treatment: HMG COAT ●Number of blades: 2 ●Outer diameter (mm): 0.6 ●Made in an ISO9001 certified factory ●Made in an ISO14001 certified factory Material/Finish: ●Super MG Caution: ●The shank taper angle is a guideline. ●If interference with the workpiece is required, be sure to measure it and check it. ●Please be careful of contact between the shank and the workpiece.
