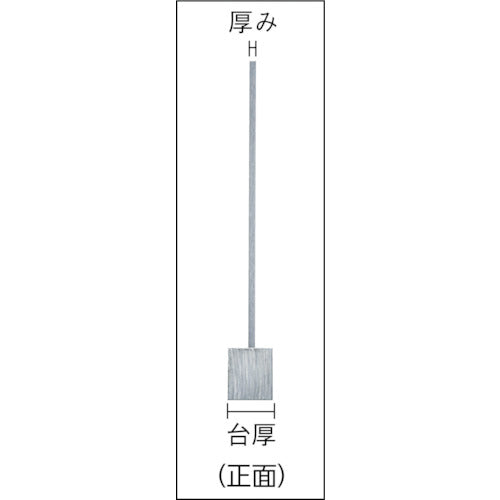

Catalogue number: ULAY-100 Features: ● The surface used is precision polished. ● A certain distance is provided to prevent mutual interference when combining parts. ● Hardened product (HS60° or higher). ● The rod and base are firmly attached using a special adhesive method. Applications: ● Grade 1 product: For inspection and measurement, and checking the accuracy of molded products. Specifications: ● Base length (mm): 70 ● Width (mm): 18 ● Base width (mm): 18 ● Thickness (mm): 2.5 ● Base thickness (mm): 12 ● Nominal dimension (mm): 100 ● Shape: With base ● Precision: JIS Grade 1 (Grade 1 ± (10 + L/20) μm Hardness HS60° or higher) ● Rod length x base length (mm): 100 x 70 Material/Finish: ● Carbon tool steel
