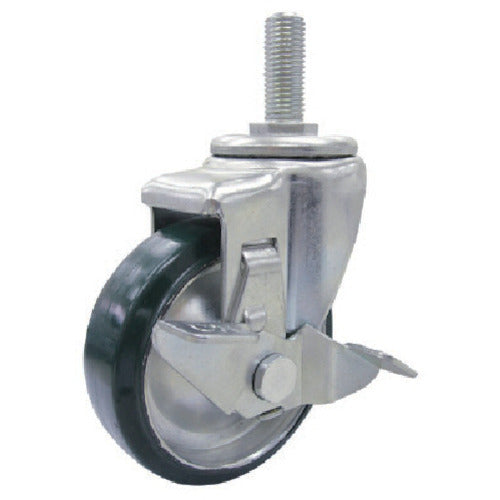

YUEI Screw-in type Swivel Caster Urethane Wheel diameter 100mm With stopper J type SJT-S type Screw size M16 x 40 Pitch 2 SJT-100UWS-M16-40 1 piece

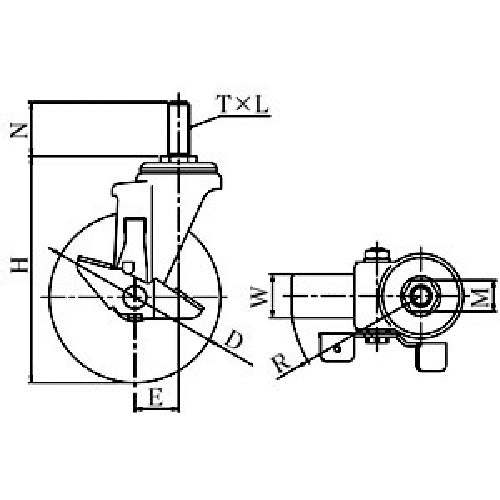

Catalog number: SJT-100UWS-M16-40 Features: ● A standard medium-sized caster widely used for transporting heavy objects. A screw-in type suitable for wagons and racks. Uses urethane wheels with excellent oil resistance and abrasion resistance. Applications: ● For carts, wagons, etc. Specifications: ● Wheel diameter D (mm): 100 ● Type: Swivel (with stopper) ● Allowable load (daN): 120 ● Allowable load (kgf): 122.4 ● Wheel width (mm): 32 ● Mounting height H (mm): 134 ● Shaft length L (mm): 40 ● Screw T: M16 ● Screw pitch (mm): 2 ● Thread: 2 ● Allowable load (N): 1200 Materials/Finish: ● Metal fittings: Steel ● Metal fitting surface treatment: Trivalent chromium finish ● Wheels: Urethane (with B)
