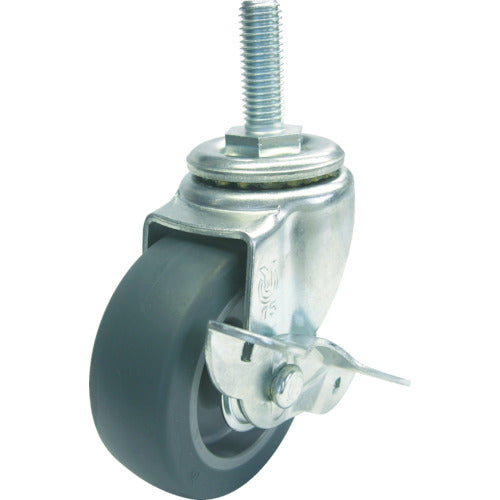

YUEI Screw-in type Swivel Caster Elastomer Wheel diameter 100mm With stopper S type ST-S type Screw size M16 x 40 Pitch 2 ST-100ELS-M16-40 1 piece

Catalog number: ST-100ELS-M16-40 Features: ●Standard small caster with excellent mobility and load capacity. Ideal for wagons and racks for transporting lightweight items. ●Material does not easily mark the floor surface. ●Uses elastomer wheels that do not easily soil the floor surface. Applications: ●For carts, furniture, and fixtures. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 50 ● Allowable load (kgf): 51 ● Wheel width (mm): 27 ● Mounting height H (mm): 126 ● Shaft length L (mm): 40 ● Thread T: M16 ● Thread pitch (mm): 2 ● Allowable load (N): 500 ● Screw-in type ● Free-wheeling (with stopper) ● Mounting pipe thickness: up to 1.8 mm possible Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Elastomer ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Elastomer
