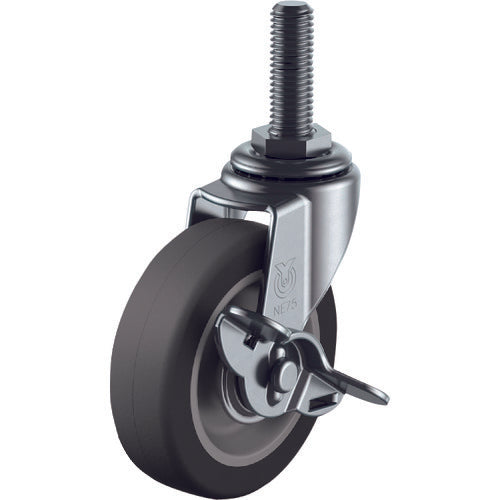

YUEI Screw-in type Swivel Caster Elastomer Wheel diameter 75mm With stopper L type LT-S type Screw size W3/8 x 14 Number of threads 16 LT-75ELS-W3/8-14 1 piece
YUEI Screw-in type Swivel Caster Elastomer Wheel diameter 75mm With stopper L type LT-S type Screw size W3/8 x 14 Number of threads 16 LT-75ELS-W3/8-14 1 piece
Regular price
¥572
Regular price
Sale price
¥572
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

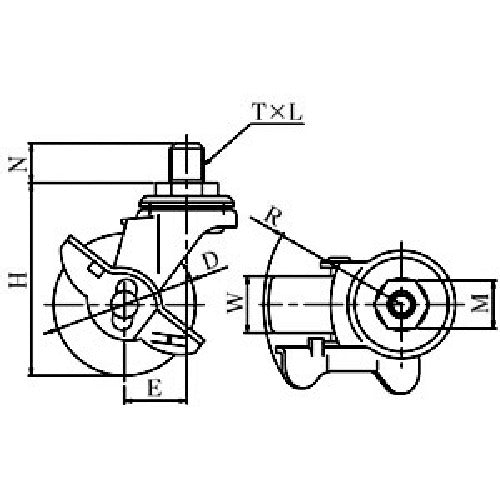

Catalog number: LT-75ELS-W3/8-14 Features: ●Standard small caster. Ideal for carts and racks for transporting lightweight items. Uses lightweight elastomer wheels that do not easily soil the floor. Applications: ●For carts, furniture, fixtures, etc. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel (with stopper) ●Allowable load (daN): 30 ●Allowable load (kgf): 30.6 ●Wheel width (mm): 21 ●Mounting height H (mm): 95 ●Axle length L (mm): 14 ●Thread T: W3/8 ●Allowable load (N): 300 ●Number of threads: 16 ●Swivel (with stopper) ●Screw-in type Materials/Finish: ●Hardware: Steel ●Hardware surface treatment: Trivalent unichrome plating finish ●Wheels: Elastomer
