YUEI Screw-in type Swivel Caster Rubber Wheel diameter 125mm With stopper J type SJT-S type Screw size M20 x 40 Pitch 2.5 SJT-125WS-M20-40 1 piece

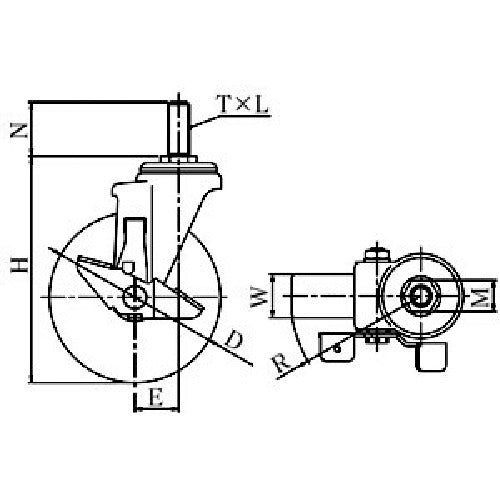

Catalog number: SJT-125WS-M20-40 Features: ● A standard medium-sized caster widely used for transporting heavy objects. A screw-in type suitable for wagons and racks. Uses rubber wheels with excellent running properties. Applications: ● For carts, wagons, etc. Specifications: ● Wheel diameter D (mm): 125 ● Type: With swivel S ● Allowable load (daN): 120 ● Allowable load (kgf): 122.4 ● Wheel width (mm): 32 ● Mounting height H (mm): 166 ● Shaft length L (mm): 40 ● Thread T: M20 ● Thread pitch (mm): 2.5 ● Allowable load (N): 1200 ● Swivel type (with stopper) ● Screw-in type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Rubber (with B)
