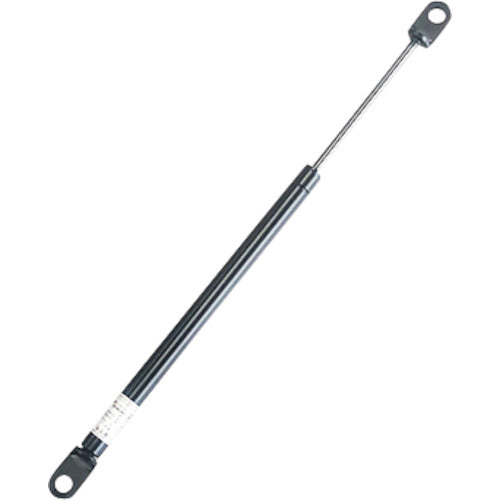

YUEI Gas Spring YBF Type YBF090098CC 1 Piece

Catalog number: YBF090098CC Features: ●Gas springs have a lower spring constant than coil springs, so they can generate a nearly constant spring force over a long compression stroke, making them ideal for opening and closing doors. ●They have a damping effect as well as a spring effect, allowing you to reliably control the opening and closing speed of doors. ●They are used as an aid when lifting or supporting heavy objects. Applications: ●For opening and closing lids and doors of cabinets and storage units. ●For raising and lowering chairs and tables. ●For opening and closing smoke exhaust windows, etc. Specifications: ●Stroke (mm): 90 ●Rebound force at full extension (N): 98 ●Rebound force at full contraction (N): 130 ●Maximum length (mm): 360 ●Minimum length (mm): 270 ●Rod diameter: 6mm ●Cylinder diameter: 15mm ●Gas spring type: Free piston ●Installation direction: 360° in all directions Material/Finish: ●Steel
