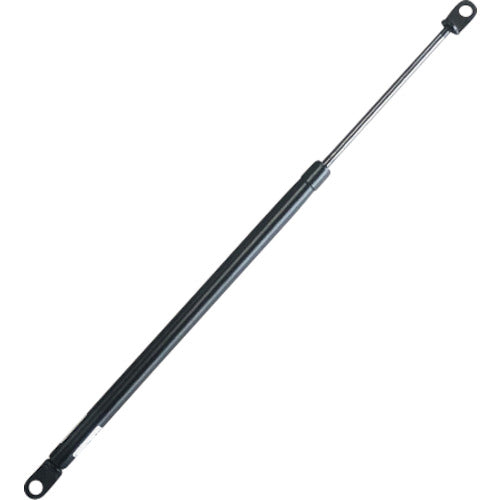

YUEI Gas Spring YCG Type YCG250294CC 1 Piece

Catalog number: YCG250294CC Features: ●Gas springs have a lower spring constant than coil springs, so they can generate a nearly constant spring force over a long compression stroke, making them ideal for opening and closing doors. ●They have a damping effect along with a spring action, allowing you to reliably control the opening and closing speed of doors. ●They are used as an aid when lifting or supporting heavy objects. Applications: ●For opening and closing lids and doors of cabinets and storage units. ●For raising and lowering chairs and tables. ●For opening and closing smoke exhaust windows, etc. Specifications: ●Stroke (mm): 250 ●Rebound force at full extension (N): 294 ●Rebound force at full contraction (N): 381 ●Maximum length (mm): 625 ●Minimum length (mm): 375 ●Rod diameter: 8mm ●Cylinder diameter: 18mm ●Gas spring type: All gas ●Installation direction: 60° Material/Finish: ●Steel
