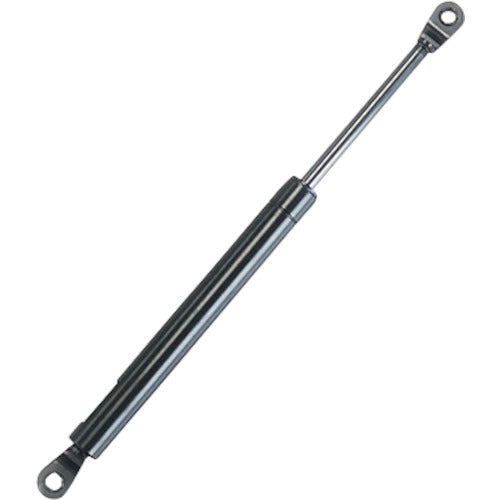

YUEI Gas Spring YDG Type Stroke 236mm Rebound Force 297N at Full Extension YDG236297AA 1 Piece
YUEI Gas Spring YDG Type Stroke 236mm Rebound Force 297N at Full Extension YDG236297AA 1 Piece
Regular price
¥3,736
Regular price
Sale price
¥3,736
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: YDG236297AA Features: ●Gas springs have a lower spring constant than coil springs, so they can generate a nearly constant spring force over a long compression stroke, making them ideal for opening and closing doors. Applications: ●For opening and closing lids and doors of cabinets, storage units, etc. Specifications: ●Stroke (mm): 236 ●Rebound force at full extension (N): 297 ●Rebound force at full contraction (N): 395 ●Maximum length (mm): 580 ●Minimum length (mm): 344 ●Rod diameter: 10 mm ●Cylinder diameter: 22 mm ●Gas spring type: All gas ●Installation direction: 60° Material/Finish: ●Steel
