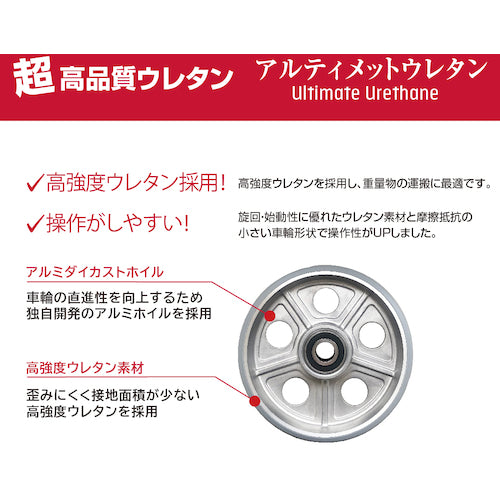

Catalogue number: PMR-100AUU Features: ● Excellent turning performance and operability with a turning starting force of approximately 8 kg (total load 500 kg, φ200). ● Improved the initial movement that feels the heaviest when transporting, and achieves smooth turning performance when changing direction. ● Good turning starting performance reduces the burden on the worker. ● Reduces shimmy phenomenon and reduces noise. ● Less wear on the wheels, achieving a long life. ● Amazing turning performance "Premium Urethane" allows a total load of 500 kg to be pushed with one hand at approximately 17 kg. (Based on in-house experiments with φ150). Applications: ● As a heavy duty trolley. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Permissible load (daN): 250 ● Permissible load (kgf): 255 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 115 ● Mounting seat B (mm): 115 ● Mounting pitch X (mm): 80 ● Mounting pitch Y (mm): 45 ● Mounting hole diameter P (mm): 11 ● Shaft diameter d (mm): 12 ● Permissible load (N): 2500 ● Plate type Material / Finish: ● Body: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Aluminum wheels, Ultimate Urethane
