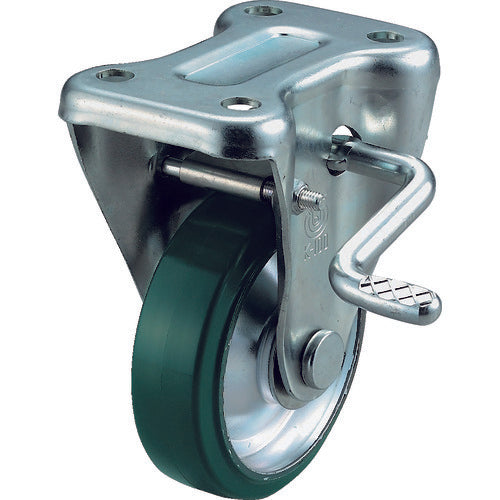

YUEI Plate-type Fixed Caster Urethane Wheel Diameter 100mm with Stopper J-type KB(R) Type Mounting Dimensions 80 x 45 UWKB-100R 1 pc

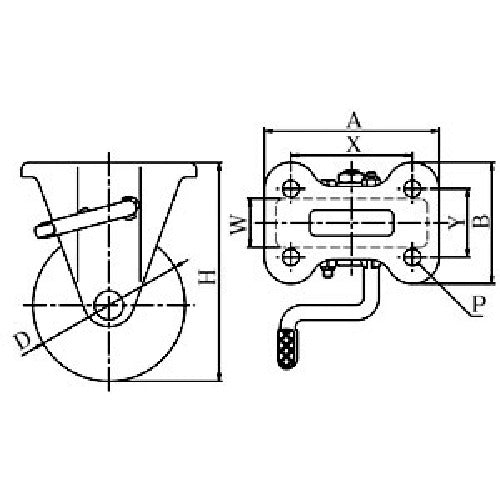

Catalogue number: UWKB-100R Features: ● A standard large caster widely used for transporting heavy objects. Applications: ● Ideal for carts and wagons. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed (with stopper) ● Allowable load (daN): 180 ● Allowable load (kgf): 183.6 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 115 ● Mounting seat B (mm): 80 ● Mounting pitch X (mm): 80 ● Mounting pitch Y (mm): 45 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1800 ● Plate type ● With bearings ● Fixed (with stopper) Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, urethane
