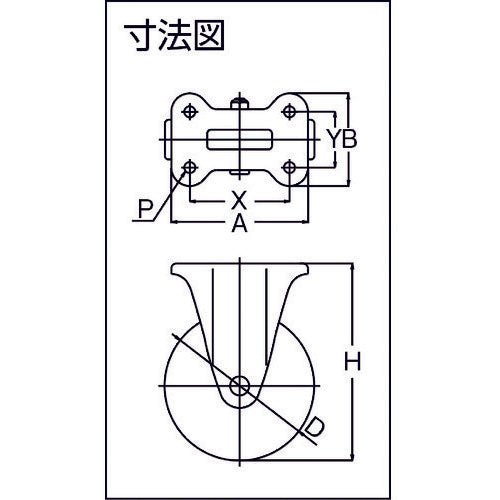

Catalogue number: PMR-100UWBINJ Features: ● Unique design achieves a travel distance three times longer than that of general U-EI casters. ● Running costs can be significantly reduced by reducing the number of replacements. Applications: ● For carts that need to move heavy objects easily. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 180 ● Allowable load (kgf): 184 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 115 ● Mounting seat B (mm): 80 ● Mounting pitch X (mm): 80 ● Mounting pitch Y (mm): 45 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1800 ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fitting surface treatment: Trivalent chromium finish ● Wheels: Urethane (with B)
