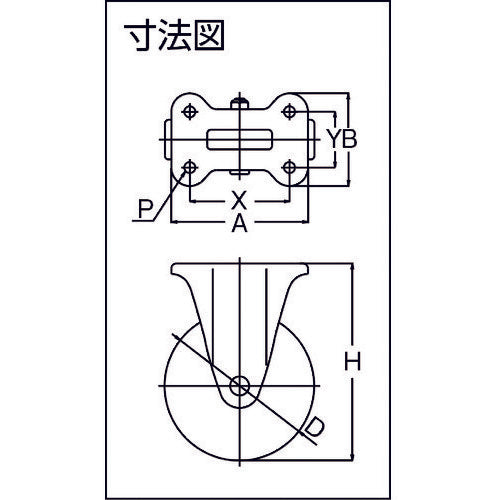

Catalogue number: PMR-200UWBINJ Features: ● Unique design achieves a travel distance three times longer than that of general U-EI casters. ● Running costs can be significantly reduced by reducing the number of replacements. Applications: ● For carts that need to move heavy objects easily. Specifications: ● Wheel diameter D (mm): 200 ● Type: Fixed type ● Allowable load (daN): 400 ● Allowable load (kgf): 408 ● Wheel width (mm): 200 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 151 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 112 ● Mounting pitch Y (mm): 63 ● Mounting hole diameter P (mm): 11.5 ● Allowable load (N): 4000 ● Fixed type ● Plate type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Urethane (with B)
