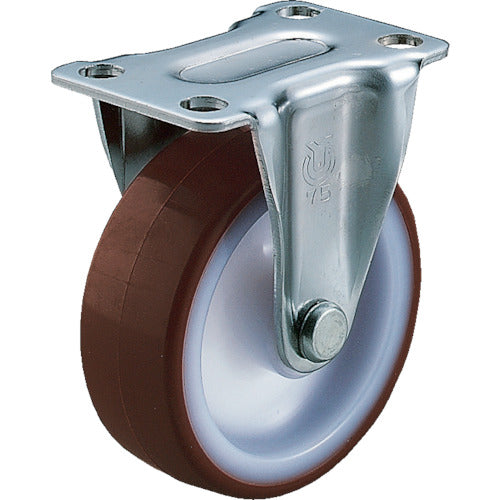

YUEI Plate-type Fixed Caster Urethane Wheel Diameter 65mm G Type GR Type Mounting Dimensions 55 x 28 GR-65UR 1 pc

YUEI Plate-type Fixed Caster Urethane Wheel Diameter 65mm G Type GR Type Mounting Dimensions 55 x 28 GR-65UR 1 pc

JAN：4562182576286 　
caster Hardware and building materials Plate-type urethane casters Plate-type urethane wheels YUEI Light Duty Casters
¥724
¥724
Sale Sold out
Shipping calculated at checkout.

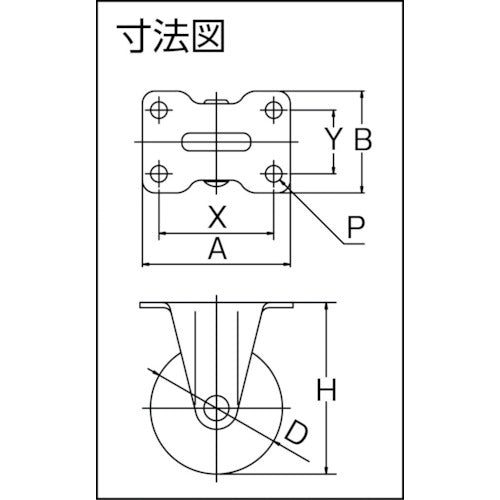

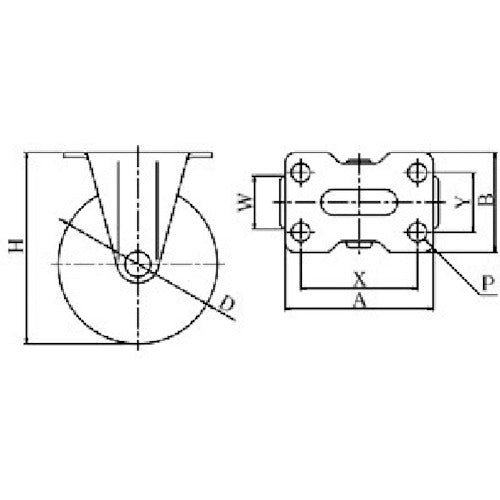

Catalogue number: GR-65UR Features: ●Standard small caster. Available in a range of sizes, from the smallest to the largest. ●Urethane wheels have excellent oil and abrasion resistance. Applications: ●Lightweight trolleys Specifications: ●Wheel diameter D (mm): 65 ●Type: Fixed ●Allowable load (daN): 55 ●Allowable load (kgf): 56.1 ●Wheel width (mm): 25 ●Mounting height H (mm): 80 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 47 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 560 ●Fixed ●Plate type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon wheels, urethane
