YUEI Plate-type Fixed Caster, Gray Rubber, Wheel Diameter 125mm, J Type, K2 Type, Mounting Dimensions 112 x 53 (100 x 56) NWRK2-125-G 1 pc

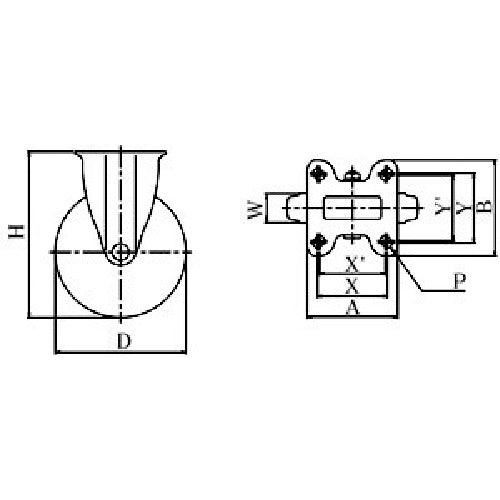

Catalogue number: NWRK2-125-G Features: ●No running marks, a drawback of rubber. ●Lightweight as the wheel is made of resin. Applications: ●For roll box pallets, etc. Specifications: ●Wheel diameter D (mm): 125 ●Type: Fixed type ●Allowable load (daN): 150 ●Allowable load (kgf): 153.0 ●Wheel width (mm): 34 ●Mounting height H (mm): 168 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 93 ●Mounting pitch X (mm): 100-112 ●Mounting pitch Y (mm): 53-56 ●Mounting hole diameter P (mm): 11 ●Mounting pitch X x Y (mm): 112 x 53 (100 x 56) ●Fixed type ●Plate type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon wheel rubber
