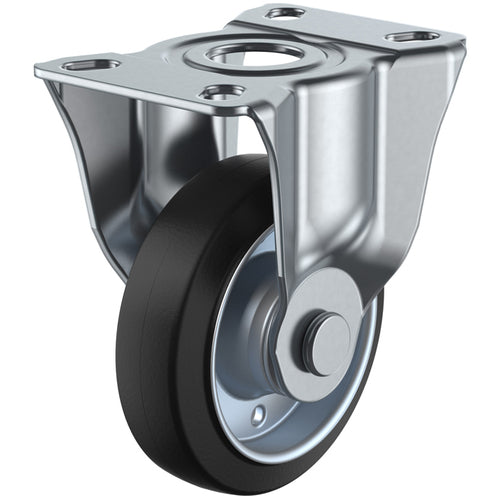

YUEI Plate-type Fixed Caster, Rubber, Wheel diameter 100mm, J-type, SK-type, Mounting dimensions 90x50 (80x45), SK-100W, 1 piece

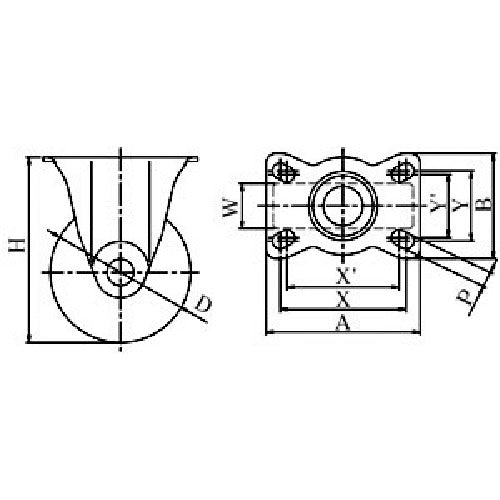

Catalog number: SK-100W Features: ● A standard medium-sized caster widely used for transporting heavy objects. Uses rubber wheels with excellent running properties. Applications: ● For roll box pallets, etc. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 120 ● Allowable load (kgf): 122.4 ● Wheel width (mm): 32 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 110 ● Mounting seat B (mm): 75 ● Mounting pitch X (mm): 80-90 ● Mounting pitch Y (mm): 45-50 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1200 ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fitting surface treatment: Trivalent chromium finish ● Wheels: Rubber (B included)
