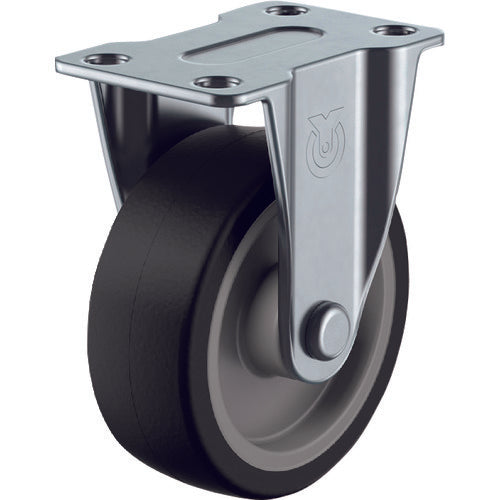

YUEI Plate-type Fixed Caster, Rubber, Wheel diameter 100mm, S-type, SR-type, Mounting dimensions 82 x 40, SR-100NR, 1 piece

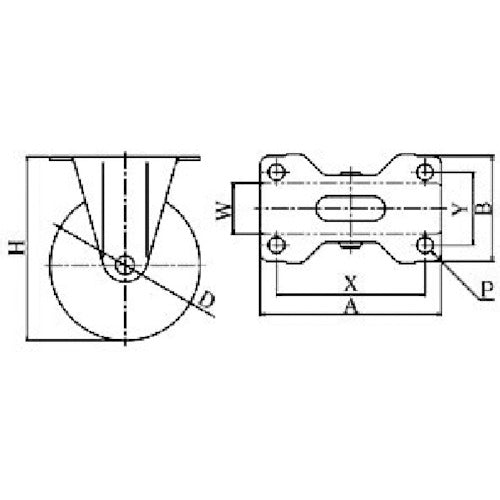

Catalogue number: SR-100NR Features: ●Standard small caster with excellent running and load capacity. Uses nylon wheel rubber wheels that are lightweight and have excellent running properties. Applications: ●For carts, furniture, fixtures, etc. Specifications: ●Wheel diameter D (mm): 100 ●Type: Fixed type ●Allowable load (daN): 60 ●Allowable load (kgf): 61.2 ●Wheel width (mm): 27 ●Mounting height H (mm): 122 ●Mounting seat A (mm): 100 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 82 ●Mounting pitch Y (mm): 40 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 600 ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent unichrome plating finish ●Wheels: Nylon wheel rubber
