YUEI Plate-type Fixed Caster, Rubber, Wheel diameter 65mm, S-type, SR-type, Mounting dimensions 55 x 28, SR-65RH, 1 piece

YUEI Plate-type Fixed Caster, Rubber, Wheel diameter 65mm, S-type, SR-type, Mounting dimensions 55 x 28, SR-65RH, 1 piece

JAN：4562182571953 　
caster Hardware and building materials Plate Type Rubber Caster Plate-type rubber wheels YUEI Light Duty Casters
¥488
¥488
Sale Sold out
Shipping calculated at checkout.

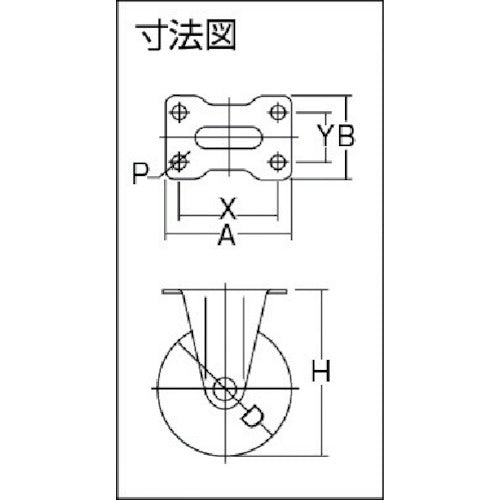

Catalogue number: SR-65RH Features: ●Standard small caster with excellent running performance and load-bearing capacity. ●Excellent wear resistance. ●Light starting resistance. Applications: ●For carts, furniture, and fixtures. Specifications: ●Wheel diameter D (mm): 65 ●Type: Fixed type ●Allowable load (daN): 50 ●Allowable load (kgf): 51 ●Wheel width (mm): 25 ●Mounting height H (mm): 85 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 47 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 500 ●Plate type ●Double bearing included ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Rubber
View full details
