YUEI Plate-type Fixed Caster, Rubber, Wheel diameter 75mm, S-type, SR-type, Mounting dimensions 55 x 28, SR-75RH, 1 piece

YUEI Plate-type Fixed Caster, Rubber, Wheel diameter 75mm, S-type, SR-type, Mounting dimensions 55 x 28, SR-75RH, 1 piece

JAN：4562182571960 　
caster Hardware and building materials Plate Type Rubber Caster Plate-type rubber wheels YUEI Light Duty Casters
¥563
¥563
Sale Sold out
Shipping calculated at checkout.

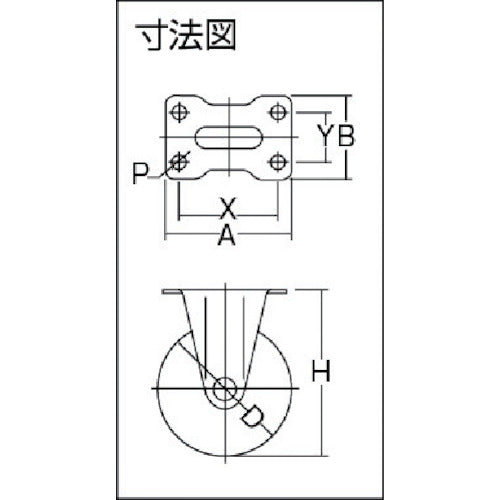

Catalog number: SR-75RH Features: ●Standard small caster with excellent running ability and load-bearing capacity. ●Excellent wear resistance. ●Light starting resistance. Applications: ●For carts, furniture, and fixtures. Specifications: ● Wheel diameter D (mm): 75 ● Type: Fixed type ● Permissible load (daN): 60 ● Permissible load (kgf): 61.2 ● Wheel width (mm): 25 ● Mounting height H (mm): 93 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 47 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 8.8 ● Permissible load (N): 600 ● Wheel material: Rubber ● Caster diameter (mm): 75 ● Mounting seat (mm): 70 x 47 ● Mounting pitch (mm): 55 x 28 ● Plate type ● Double bearing included ● Fixed type Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Rubber
View full details
