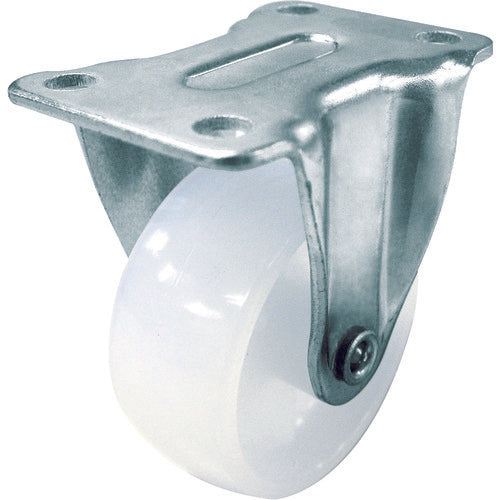

YUEI Plate-type Fixed Caster Nylon Wheel diameter 50mm G type GR type Mounting dimensions 45 x 25 GR-50N 1 piece

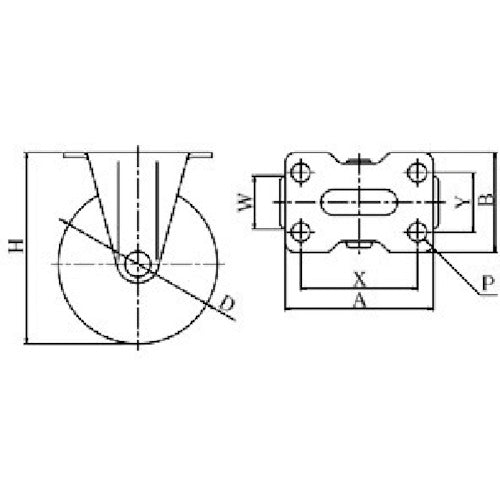

Catalogue number: GR-50N Features: ●Standard small caster, available in the smallest size. ●Standard small caster. Available in the smallest size. Uses nylon wheels with excellent wear resistance. Applications: ●Lightweight carts, furniture Specifications: ●Wheel diameter D (mm): 50 ●Type: Fixed type ●Allowable load (daN): 38 ●Allowable load (kgf): 38.8 ●Wheel width (mm): 21 ●Mounting height H (mm): 65 ●Mounting seat A (mm): 58 ●Mounting seat B (mm): 40 ●Mounting pitch X (mm): 45 ●Mounting pitch Y (mm): 25 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 380 ●Plate type ●Fixed type ●Metal fittings: Chrome plated Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon
