（株）ユーエイ　キャスター事業部

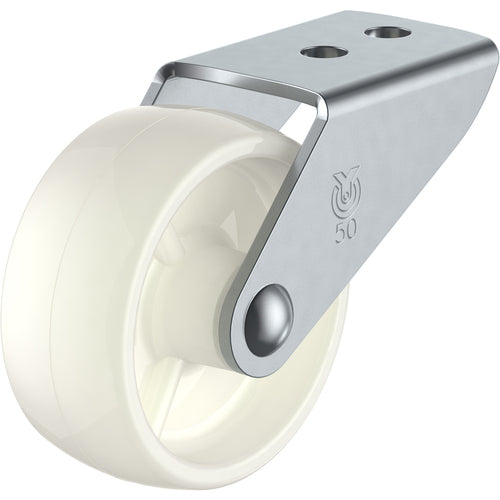

YUEI Plate-type Fixed Caster Nylon Wheel diameter 50mm G type GRE type Mounting dimensions 14x0 GRE-50N 1 piece

YUEI Plate-type Fixed Caster Nylon Wheel diameter 50mm G type GRE type Mounting dimensions 14x0 GRE-50N 1 piece

JAN：4589856904886 　
caster Hardware and building materials Plate-type nylon casters Plate-type nylon wheels YUEI Light Duty Casters
¥181
¥181
Sale Sold out
Shipping calculated at checkout.

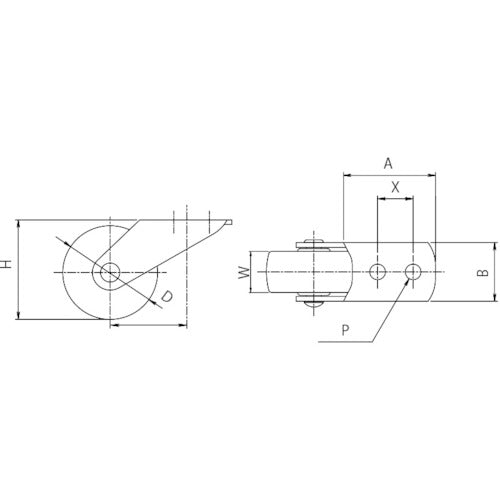

Catalogue number: GRE-50N Features: ●Can be installed either vertically or horizontally, allowing for space-saving installation. Applications: ●For furniture, etc. Specifications: ●Wheel diameter D (mm): 50 ●Type: Fixed type ●Allowable load (daN): 50 ●Allowable load (kgf): 51.0 ●Wheel width (mm): 20 ●Mounting height H (mm): 52 ●Mounting seat A (mm): 40 ●Mounting seat B (mm): 30 ●Mounting pitch X (mm): 14 ●Mounting pitch Y (mm): 0 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 500 ●Plate type Materials/Finish: ●Body: Steel ●Metal fitting surface treatment: Trivalent chromium finish ●Wheels: Nylon
