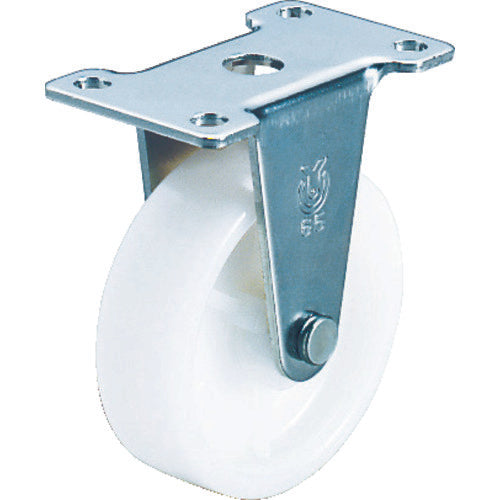

YUEI Plate-type Fixed Caster Nylon Wheel diameter 65mm E type ER type Mounting dimensions 56 x 28 ER-65N 1 piece

YUEI Plate-type Fixed Caster Nylon Wheel diameter 65mm E type ER type Mounting dimensions 56 x 28 ER-65N 1 piece

JAN：4562182577573 　
caster Hardware and building materials Plate-type nylon casters Plate-type nylon wheels YUEI Light Duty Casters
¥322
¥322
Sale Sold out
Shipping calculated at checkout.

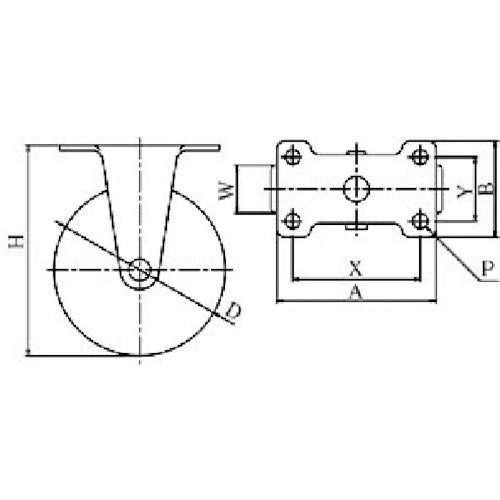

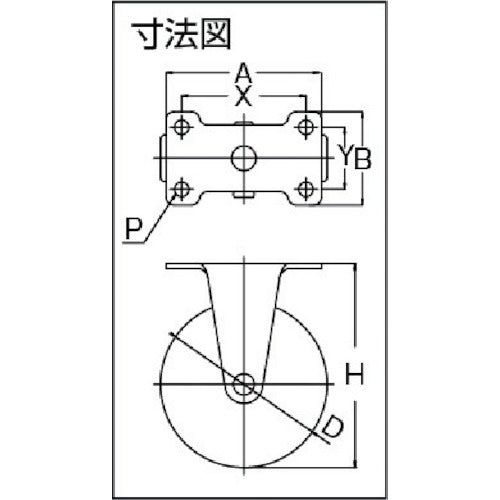

Catalogue number: ER-65N Features: ●High-quality chrome-plated finish for excellent decorativeness. ●Nylon wheels have low starting resistance and excellent wear resistance. Applications: ●For carts, furniture, and fixtures. Specifications: ●Wheel diameter D (mm): 65 ●Type: Fixed type ●Allowable load (daN): 40 ●Allowable load (kgf): 40.8 ●Wheel width (mm): 21 ●Mounting height H (mm): 82 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 42 ●Mounting pitch X (mm): 56 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 400 ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Chrome-plated finish ●Wheels: Nylon
