YUEI Plate-type Fixed Caster Nylon Wheel diameter 65mm G type GR type Mounting dimensions 55 x 28 GR-65N 1 piece

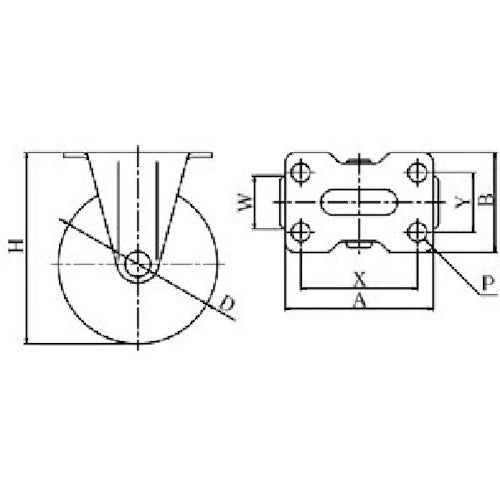

Catalogue number: GR-65N Features: ●Standard small caster, available in the smallest size. ●Standard small caster. Available in the smallest size. Uses nylon wheels with excellent wear resistance. Applications: ●Lightweight carts, furniture Specifications: ●Wheel diameter D (mm): 65 ●Type: Fixed type ●Allowable load (daN): 55 ●Allowable load (kgf): 56.1 ●Wheel width (mm): 25 ●Mounting height H (mm): 80 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 47 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 550 ●Plate type ●Fixed type ●Metal fittings: Chrome plated Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon
