YUEI Plate-type Fixed Caster Nylon Wheel diameter 75mm S-type SR-type Mounting dimensions 55 x 28 SR-75N 1 piece

YUEI Plate-type Fixed Caster Nylon Wheel diameter 75mm S-type SR-type Mounting dimensions 55 x 28 SR-75N 1 piece

JAN：4562182574770 　
caster Hardware and building materials Plate-type nylon casters Plate-type nylon wheels YUEI Light Duty Casters
¥444
¥444
Sale Sold out
Shipping calculated at checkout.

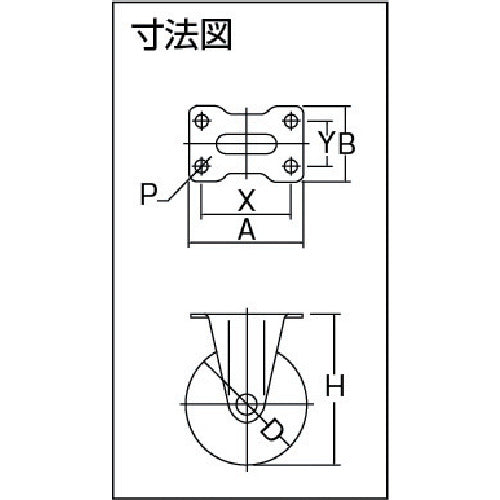

Catalogue number: SR-75N Features: ● A small caster with excellent mobility and load-bearing capacity. Applications: ● For carts, furniture, and fixtures. Specifications: ● Wheel diameter D (mm): 75 ● Type: Fixed type ● Allowable load (daN): 80 ● Allowable load (kgf): 81.6 ● Wheel width (mm): 25 ● Mounting height H (mm): 93 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 47 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 800 ● Plate type ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon
