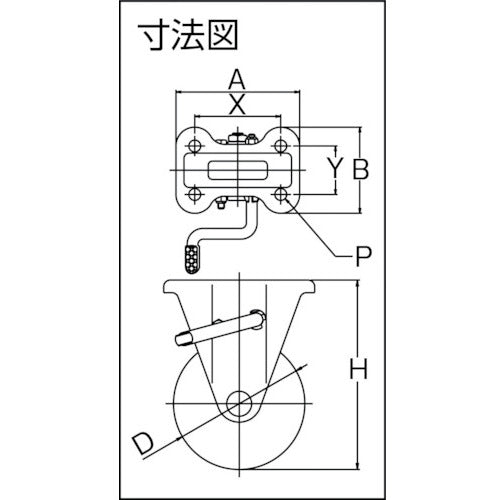

YUEI Plate-type Fixed Caster Premium Urethane Wheel Diameter 200mm with Stopper PM Type PMR-LB(R) Mounting Dimensions 112 x 63 PMR-200APULB(R) 1 pc

Catalog number: PMR-200APULB(R) Features: ●Good turning startability, reducing the workload. ●Suppresses shimmy phenomenon and produces low noise. ●Less wear on the wheels, achieving a long life. ●Amazing turning performance "Premium Urethane" achieves approximately 17kg*, which allows a total load of 500kg to be pushed with one hand (*based on in-house testing for φ150). Uses: ●Heavy-duty trolley Specifications: ●Wheel diameter D (mm): 200 ●Type: Fixed (with stopper) ●Allowable load (daN): 400 ●Allowable load (kgf): 408 ●Wheel width (mm): 45 ●Mounting height H (mm): 250 ●Mounting seat A (mm): 151 ●Mounting seat B (mm): 151 ●Mounting pitch X (mm): 112 ●Mounting pitch Y (mm): 63 ●Mounting hole diameter P (mm): 11.5 ●Shaft diameter d (mm): 20 ●Allowable load (N): 4000 ●Plate type ●Radial ball bearing included Materials/Finish: ●Body: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Aluminum wheels, premium urethane
