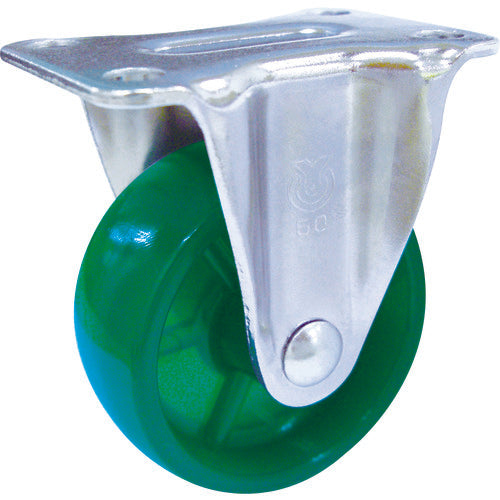

YUEI Plate-type Fixed Caster Green Polycarbonate Wheel Diameter 25mm G Type GR Type Mounting Dimensions 29 x 0 GR-25PC-G 1 Piece

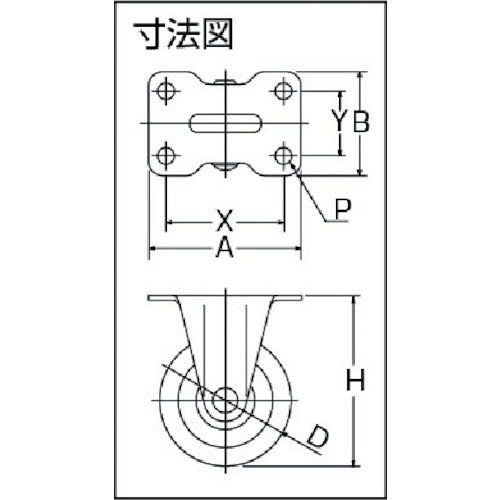

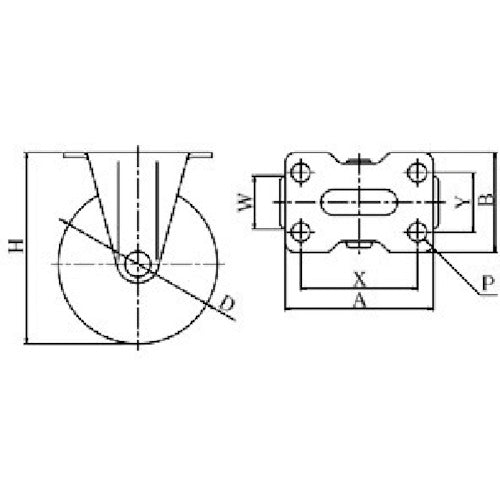

Catalog number: GR-25PC-G Features: * Easy-to-use caster with low starting resistance. * Polycarbonate caster that does not easily soil floors. * Wheel color variations can be used according to the application. Uses: ● Light duty cart ● Indoor use such as in offices ● Office supplies Specifications: ● Wheel diameter D (mm): 25 ● Type: Fixed ● Allowable load (daN): 10 ● Allowable load (kgf): 10.2 ● Wheel width (mm): 12 ● Mounting height H (mm): 35 ● Mounting base A (mm): 36 ● Mounting base B (mm): 18 ● Mounting pitch X (mm): 29 (2 holes) ● Mounting hole diameter P (mm): 4.2 ● Allowable load (N): 100 ● Mounting pitch X × Y (mm): 29 (2 holes) ● Color: Green ● Plate type ● Fixed Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium plating finish ● Wheels: Polycarbonate Caution: ● Safe load = allowable load per caster x number used x 0.8 ● There are two mounting holes.
