YUEI Plate-type Fixed Stainless Steel Caster Nylon Wheel Diameter 150mm J Type SUS-K Type Mounting Dimensions 100 x 56 SUS-NK-150 1 Piece

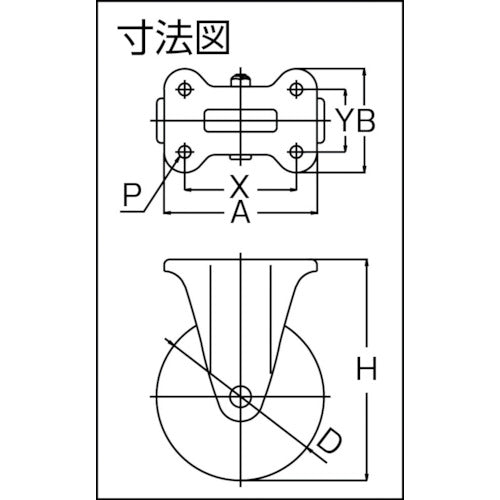

Catalog number: SUS-NK-150 Features: ●Standard large caster with all-stainless steel metal fittings that are highly water-resistant and corrosion-resistant. ●Ideal for wet areas where food and medicines are handled, or where rust is undesirable. ●Suitable for use in wet areas as the metal fittings are all-stainless steel. Applications: ●All-stainless steel food carts, medicine carts, wagons. Specifications: ●Wheel diameter D (mm): 150 ●Type: Fixed type ●Allowable load (daN): 180 ●Allowable load (kgf): 183.6 ●Wheel width (mm): 40 ●Mounting height H (mm): 198 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 93 ●Mounting pitch X (mm): 100 ●Mounting pitch Y (mm): 56 ●Mounting hole diameter P (mm): 11 ●Allowable load (N): 1600 ●Plate type ●Fixed type ●Axle bearing: Yes (stainless steel) Material/Finish: ●Metal fittings: Stainless steel (SUS304) ●Wheels: Nylon
