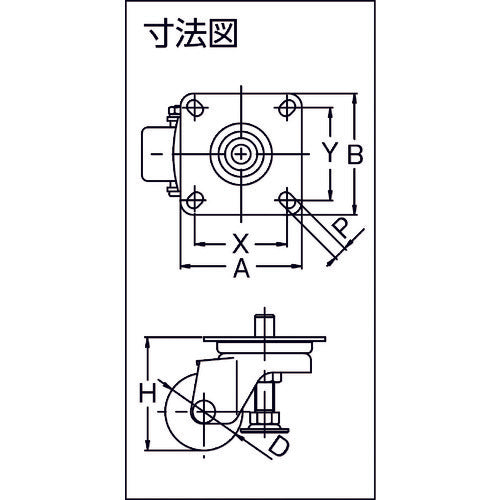

Catalogue number: HG-75MC-AF Features: ● Equipped with both caster and adjuster functions. ● Can be used as a caster when moving, and can be fixed as an adjuster foot when installed. ● Ideal for transporting machinery and equipment. Specifications: ● Wheel diameter D (mm): 75 ● Type: Swivel ● Allowable load (daN): 320 ● Allowable load (kgf): 326.4 ● Wheel width (mm): 38 ● Mounting height H (mm): 106 ● Mounting seat A (mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 71 ● Mounting pitch Y (mm): 71 ● Mounting hole diameter P (mm): 10.5 ● Hole diameter (mm): 10.5 ● Allowable load (N): 3200 ● Swivel ● Plate type ● With adjuster Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: MC nylon
