(株)ユーエイ キャスター事業部
YUEI Plate-type Caster with Adjuster, Reinforced Nylon, Wheel Diameter 50mm, AF Type, AF Type, Mounting Dimensions 80x80 (75x75), AF-50, 1 pc
YUEI Plate-type Caster with Adjuster, Reinforced Nylon, Wheel Diameter 50mm, AF Type, AF Type, Mounting Dimensions 80x80 (75x75), AF-50, 1 pc
Regular price
¥3,524
Regular price
Sale price
¥3,524
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

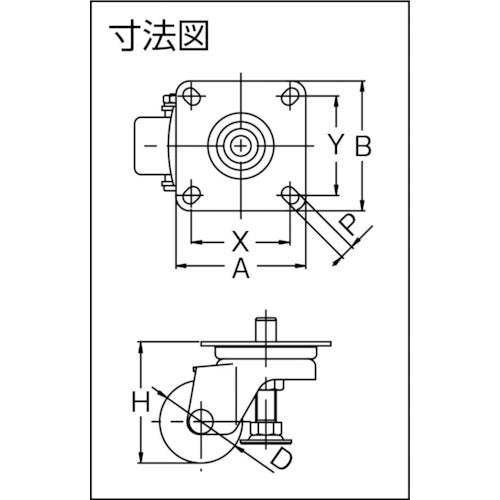

Catalogue number: AF-50 Features: ●Smooth movement with casters, and secure fixation with adjustable feet. ●Ideal for transporting machinery and equipment. Applications: ●Ideal for transporting and installing machinery and equipment. Specifications: ●Wheel diameter D (mm): 50 ●Type: Free-wheeling ●Allowable load (daN): 250 ●Allowable load (kgf): 255 ●Wheel width (mm): 45 ●Mounting height H (mm): 74 ●Mounting seat A (mm): 102 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 75-80 ●Mounting pitch Y (mm): 75-80 ●Mounting hole diameter P (mm): 11 ●Thread pitch (mm): 2.0 ●Allowable load (N): 2500 ●Thread T: M16 ●Free-wheeling ●Plate type ●With adjustable feet Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Reinforced nylon
View full details
