YUEI Plate-type Caster with Adjuster, Reinforced Nylon, Wheel Diameter 65mm, AF Type, AF Type, Mounting Dimensions 80x80 (75x75), AF-65, 1 pc

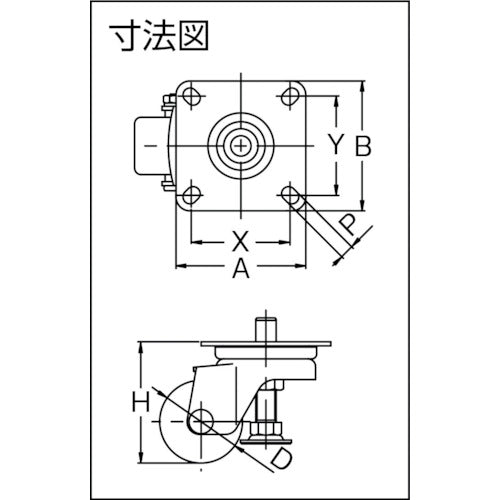

Catalogue number: AF-65 Features: ●Smooth movement with casters, and secure fixing with adjustable feet. ●Ideal for transporting machinery and equipment. Applications: ●Ideal for transporting and installing machinery and equipment. Specifications: ●Wheel diameter D (mm): 65 ●Type: Free-wheeling ●Allowable load (daN): 250 ●Allowable load (kgf): 255 ●Wheel width (mm): 45 ●Mounting height H (mm): 95 ●Mounting seat A (mm): 102 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 75-80 ●Mounting pitch Y (mm): 75-80 ●Mounting hole diameter P (mm): 11 ●Allowable load (N): 2500 ●Thread T: M16 ●Thread pitch (mm): 2.0 ●Free-wheeling ●Plate type ●With adjustable feet Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Reinforced nylon
