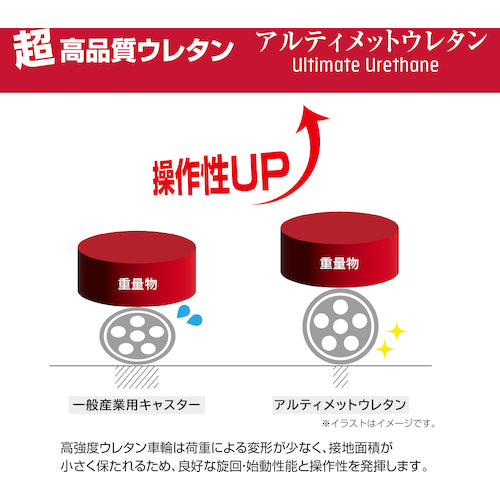

Catalog number: PMS-150AUU Features: ● With a turning starting force of approximately 8 kg (total load 500 kg, φ200), it has excellent turning performance and operability. ● It has improved the initial movement that feels the heaviest when transporting, and achieves smooth turning performance when changing direction. Applications: ● As a heavy-duty cart. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-moving ● Allowable load (daN): 350 ● Allowable load (kgf): 357.0 ● Wheel width (mm): 38 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 94-87 ● Mounting pitch Y (mm): 94-87 ● Mounting hole diameter P (mm): 11 ● Shaft diameter d (mm): 12 ● Allowable load (N): 3500 ● Plate type ● Includes radial ball bearings Material/Finish: ● Body: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Aluminum wheels, Ultimate Urethane
