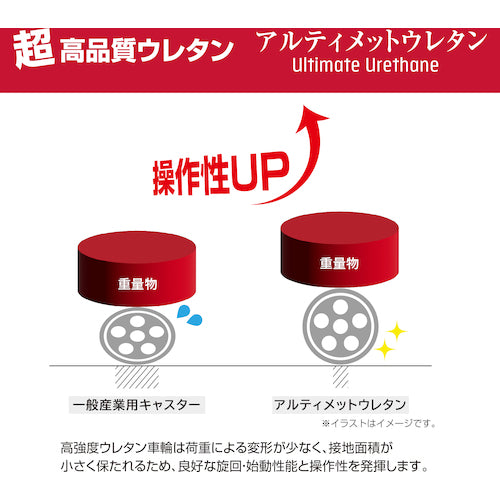

Catalog number: PMS-200AUULBR Features: ● With a turning starting force of approximately 8 kg (total load 500 kg, φ200), it has excellent turning performance and operability. ● It has improved the initial movement that feels the heaviest when transporting, and achieves smooth turning performance when changing direction. Applications: ● As a heavy-duty cart. Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-wheeling (with double stopper) ● Allowable load (daN): 400 ● Allowable load (kgf): 408 ● Wheel width (mm): 45 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 144 ● Mounting seat B (mm): 144 ● Mounting pitch X (mm): 105-120 ● Mounting pitch Y (mm): 105-120 ● Mounting hole diameter P (mm): 11.5 ● Plate type ● Includes radial ball bearings Material/Finish: ● Body: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Aluminum wheels, Ultimate Urethane
