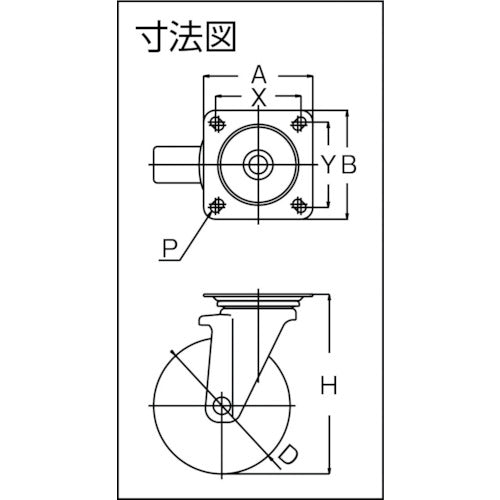

Catalog number: PMS-150GUBLB(R) Features: ● Unique design achieves a travel distance three times longer than YUEI's general casters. ● Uses nylon urethane wheels that are lightweight and have excellent oil and abrasion resistance. ● Casters that focus on operability and durability. Features light operability and a long life. ● Running costs can be significantly reduced by reducing the number of replacements. Applications: ● For carts that require easy movement of heavy objects. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 250 ● Allowable load (kgf): 255 ● Wheel width (mm): 40 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 87-94 ● Mounting pitch Y (mm): 87-94 ● Mounting hole diameter P (mm): 11 ● Plate type ● Radial ball bearing included ● Free-wheeling (with double stoppers) ● Locks the swivel and wheels simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon wheels, urethane
