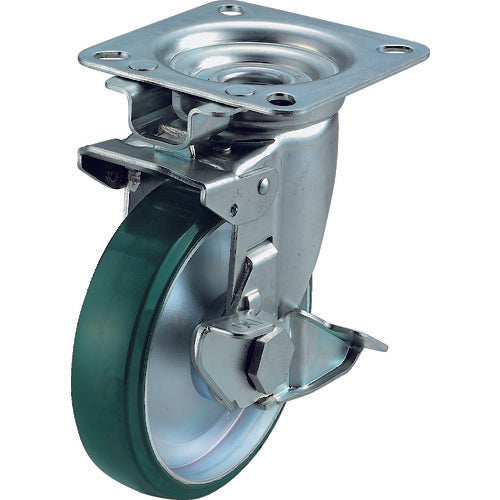

YUEI Plate-type Caster, Urethane, Wheel diameter 150mm, Swivel fixed, with stopper, J type, JK-S type, Mounting dimensions 94 x 94 (87 x 87), UWJK-150S, 1 piece

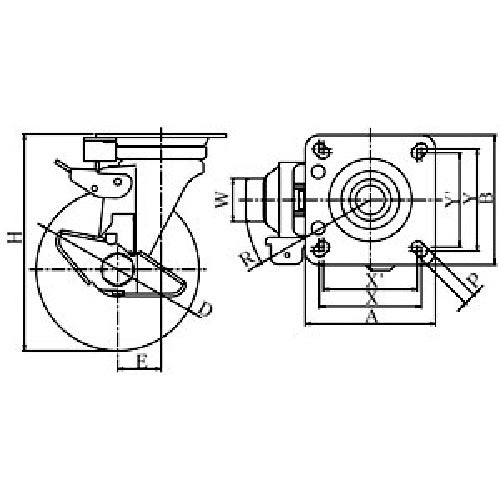

Catalog number: UWJK-150S Features: ●Standard large casters widely used for transporting heavy objects. Applications: ●Ideal for carts and wagons. Specifications: ●Wheel diameter D (mm): 150 ●Type: Swivel/fixed switchable (with stopper) ●Allowable load (daN): 300 ●Allowable load (kgf): 306 ●Wheel width (mm): 38 ●Mounting height H (mm): 198 ●Mounting seat A (mm): 120 ●Mounting seat B (mm): 120 ●Mounting pitch X (mm): 87-94 ●Mounting pitch Y (mm): 87-94 ●Mounting hole diameter P (mm): 11 ●Allowable load (N): 3000 ●Plate type ●Bearing included ●Swivel/fixed switchable (with stopper) Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Steel wheels, urethane Caution: ●Swivel is fixed in only one direction.
