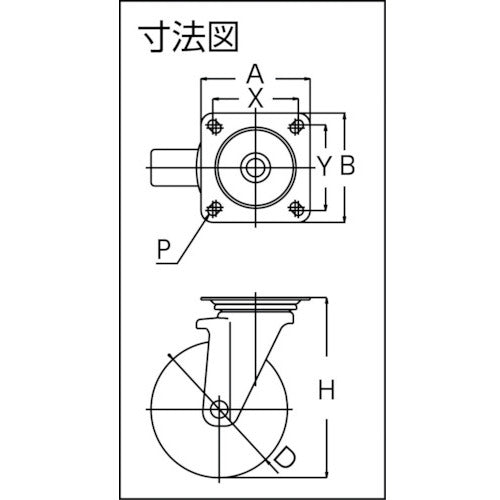

Catalog number: PMS-150UWBINJ Features: ● Unique design achieves a travel distance three times longer than YUEI's general casters. ● Running costs can be significantly reduced by reducing the number of replacements. ● Less likely to attract chips than conventional products. Applications: ● For carts that need to move heavy objects easily. ● For sites where chips adhere! Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-wheeling ● Allowable load (daN): 300 ● Allowable load (kgf): 306 ● Wheel width (mm): 38 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 87-94 ● Mounting pitch Y (mm): 87-94 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 3000 ● Free-wheeling Wheel diameter 150φ ● Plate type ● Starting performance-oriented type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Urethane (with B)
