YUEI Plate-type Swivel Caster Urethane Wheel Diameter 200mm With Stopper PM Type PMS-LB(R) Mounting Dimensions 120 x 120 (105 x 105) PMS-200GUBLB(R) 1 pc

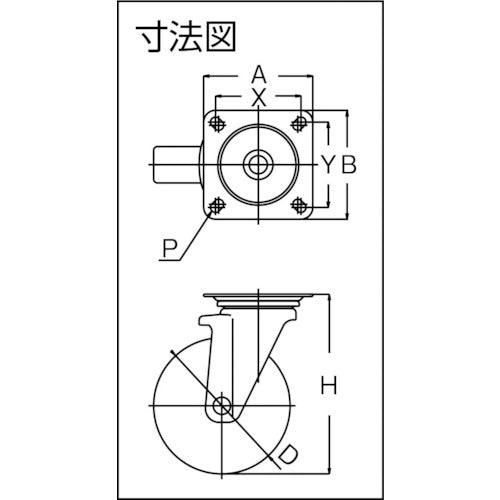

Catalog number: PMS-200GUBLB(R) Features: ● Unique design achieves a travel distance three times longer than YUEI's general casters. ● Uses nylon urethane wheels that are lightweight, oil-resistant, and abrasion-resistant. ● Running costs can be significantly reduced by reducing the number of replacements. Applications: ● For carts that require light movement of heavy objects. Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 350 ● Allowable load (kgf): 357 ● Wheel width (mm): 43 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 144 ● Mounting seat B (mm): 144 ● Mounting pitch X (mm): 105-120 ● Mounting pitch Y (mm): 105-120 ● Mounting hole diameter P (mm): 11.5 ● Allowable load (N): 2500 ● Plate type ● Radial ball bearing included ● Free-wheeling (with double stoppers) ● Swivel part and wheels are locked simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon wheels, urethane
