（株）ユーエイ　キャスター事業部

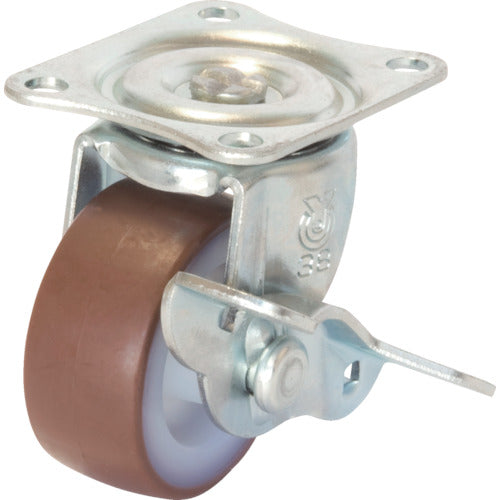

YUEI Plate-type Swivel Caster Urethane Wheel Diameter 50mm with Stopper G Type G-S Type Mounting Dimensions 46 x 35 G-50URS 1 pc

YUEI Plate-type Swivel Caster Urethane Wheel Diameter 50mm with Stopper G Type G-S Type Mounting Dimensions 46 x 35 G-50URS 1 pc

JAN：4562182577665 　
caster Hardware and building materials Plate-type urethane casters Plate-type urethane wheels YUEI Light Duty Casters
¥605
¥605
Sale Sold out
Shipping calculated at checkout.

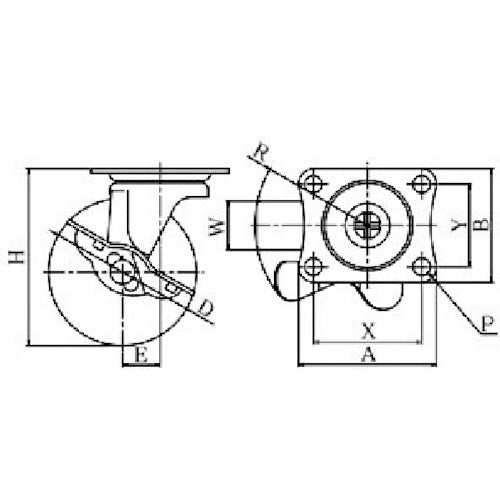

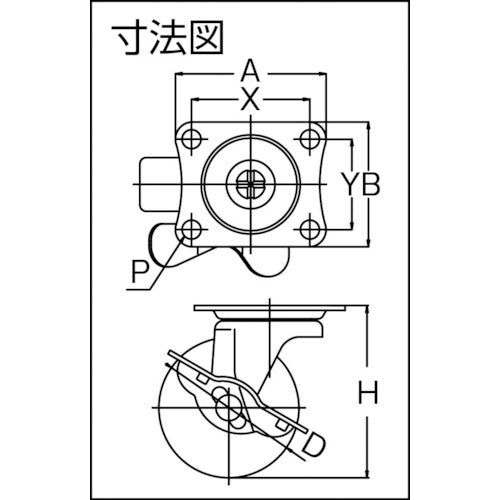

Catalogue number: G-50URS Features: ●Standard small caster. Available in a range of sizes, from the smallest to the largest. ●Urethane wheels have excellent oil and abrasion resistance. Applications: ●Lightweight trolleys Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel (with stopper) ●Allowable load (daN): 38 ●Allowable load (kgf): 38.8 ●Wheel width (mm): 21 ●Mounting height H (mm): 65 ●Mounting seat A (mm): 59 ●Mounting seat B (mm): 47 ●Mounting pitch X (mm): 46 ●Mounting pitch Y (mm): 35 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 300 ●Swivel (with stopper) ●Plate type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon wheels, urethane
View full details
