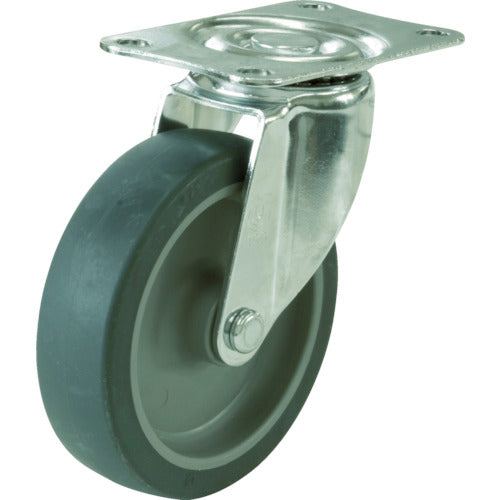

YUEI Plate-type Swivel Caster Elastomer Wheel diameter 100mm E-type E-type Mounting dimensions 82 x 40 E-100EL 1 pc

YUEI Plate-type Swivel Caster Elastomer Wheel diameter 100mm E-type E-type Mounting dimensions 82 x 40 E-100EL 1 pc

JAN：4562182578532 　
caster Hardware and building materials Plate type elastomer caster Plate-type resin car YUEI Light Duty Casters
¥908
¥908
Sale Sold out
Shipping calculated at checkout.

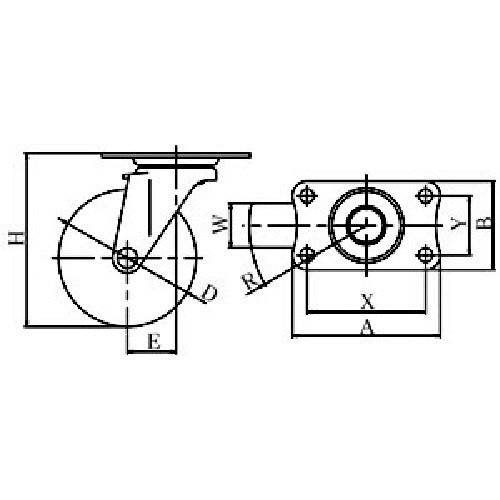

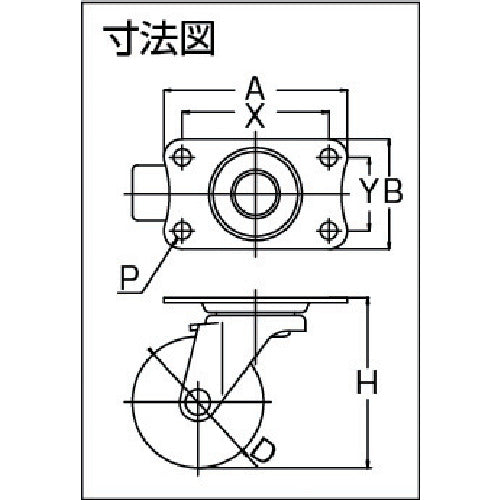

Catalogue number: E-100EL Features: ●Luxurious chrome-plated finish. ●Material does not easily mark floor surfaces. Applications: ●For carts, furniture, and fixtures. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel ●Allowable load (daN): 50 ●Allowable load (kgf): 51 ●Wheel width (mm): 27 ●Mounting height H (mm): 122 ●Mounting seat A (mm): 100 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 82 ●Mounting pitch Y (mm): 40 ●Mounting hole diameter P (mm): 8.8 ●Swivel ●Plate type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Chrome-plated finish ●Wheels: Elastomer
