YUEI Plate-type Swivel Caster Elastomer Wheel diameter 25mm G-type G-type Mounting dimensions 28 x 23 G-25EL 1 pc

YUEI Plate-type Swivel Caster Elastomer Wheel diameter 25mm G-type G-type Mounting dimensions 28 x 23 G-25EL 1 pc

JAN：4580322261335 　
caster Hardware and building materials Plate type elastomer caster Plate-type resin car YUEI Light Duty Casters
¥121
¥121
Sale Sold out
Shipping calculated at checkout.

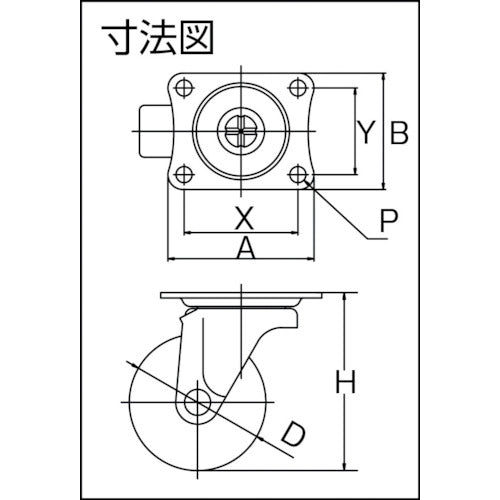

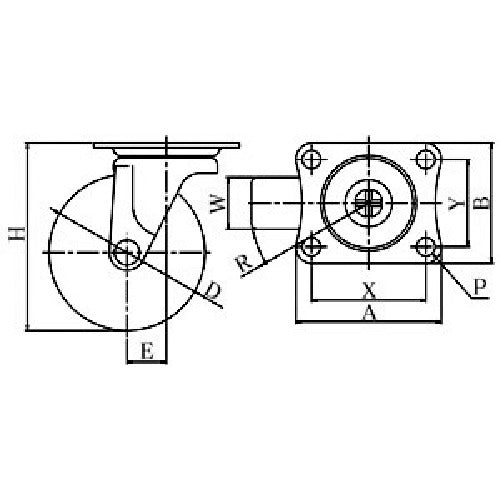

Catalogue number: G-25EL Features: ●Material does not easily mark the floor surface. ●Uses elastomer wheels that do not easily soil the floor surface. Uses: ●Lightweight trolley Specifications: ●Wheel diameter D (mm): 25 ●Type: Swivel ●Allowable load (daN): 8 ●Allowable load (kgf): 8.2 ●Wheel width (mm): 12 ●Mounting height H (mm): 35 ●Mounting seat A (mm): 35 ●Mounting seat B (mm): 30 ●Mounting pitch X (mm): 28 ●Mounting pitch Y (mm): 23 ●Mounting hole diameter P (mm): 4.2 ●Allowable load (N): 80 ●Swivel ●Plate type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer
View full details
