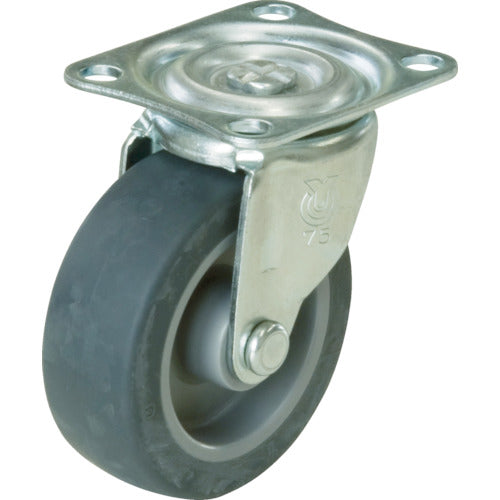

YUEI Plate-type Swivel Caster Elastomer Wheel diameter 50mm G-type G-type Mounting dimensions 46 x 35 G-50EL 1 pc

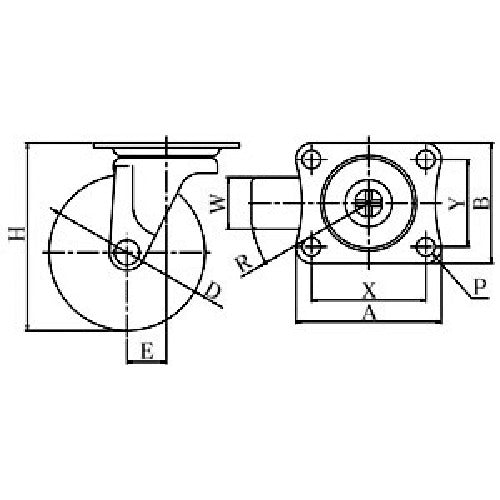

Catalogue number: G-50EL Features: ●Standard small caster. ●Material does not easily mark the floor surface. ●Uses elastomer wheels that do not easily soil the floor surface. Uses: ●Lightweight trolley Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel ●Allowable load (daN): 25 ●Allowable load (kgf): 25.5 ●Wheel width (mm): 20 ●Mounting height H (mm): 65 ●Mounting seat A (mm): 59 ●Mounting seat B (mm): 47 ●Mounting pitch X (mm): 46 ●Mounting pitch Y (mm): 35 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 250 ●Swivel ●Plate type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer
