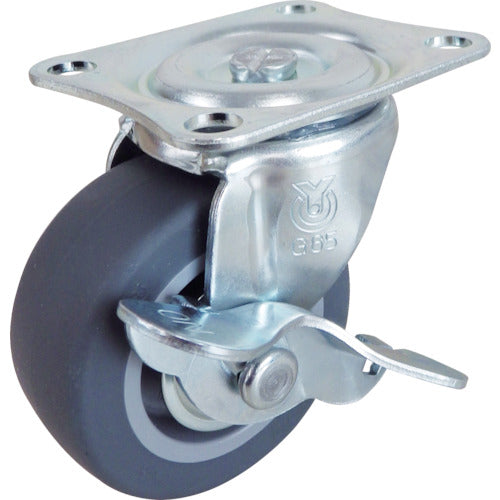

YUEI Plate-type Swivel Caster Elastomer Wheel diameter 65mm With stopper G type G-S type Mounting dimensions 55 x 42 G-65ELS 1 piece

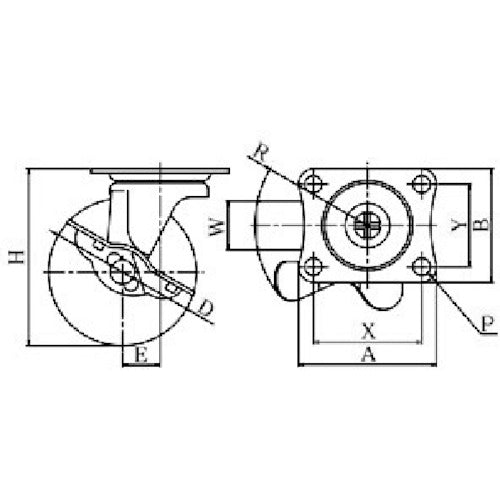

Catalogue number: G-65ELS Features: ●Standard small caster. ●Material does not easily mark the floor surface. ●Uses elastomer wheels that do not easily soil the floor surface. Uses: ●Lightweight carts Specifications: ●Wheel diameter D (mm): 65 ●Type: Swivel (with stopper) ●Allowable load (daN): 40 ●Allowable load (kgf): 40.8 ●Wheel width (mm): 27 ●Mounting height H (mm): 80 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 42 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 400 ●Plate type ●Swivel type (with stopper) Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer
