YUEI Plate-type Swivel Caster, Rubber, Wheel diameter 150mm, With stopper, PM type, PMS-LB(R), Mounting dimensions 94 x 94 (87 x 87), PMS-150WBLB(R), 1 piece

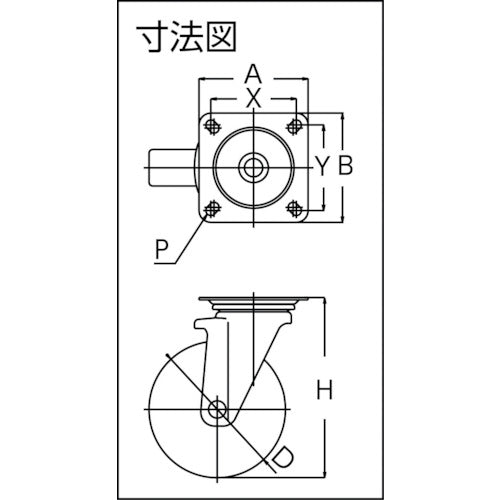

Catalog number: PMS-150WBLB(R) Features: ● Unique design achieves a travel distance three times longer than YUEI's general casters. ● Running costs can be significantly reduced by reducing the number of replacements. Applications: ● For carts for moving heavy objects easily. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 200 ● Allowable load (kgf): 204 ● Wheel width (mm): 40 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 87-94 ● Mounting pitch Y (mm): 87-94 ● Mounting hole diameter P (mm): 11 ● Plate type ● Radial ball bearing included ● Free-wheeling (with double stoppers) ● Locks swivel and wheels simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, rubber ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, rubber
