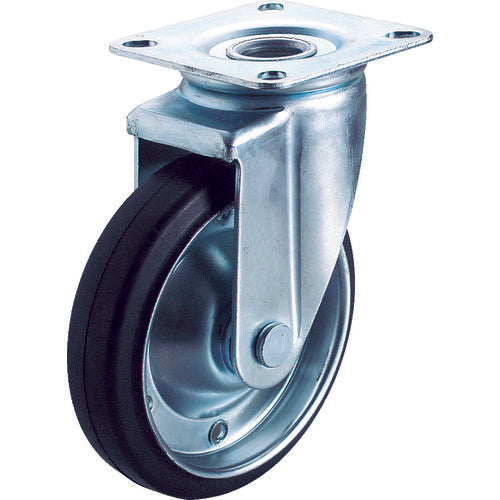

YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 150mm, J Type, J2 Type, Mounting Dimensions 80x80 (75x75), WJ2-150, 1 pc

YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 150mm, J Type, J2 Type, Mounting Dimensions 80x80 (75x75), WJ2-150, 1 pc

JAN：4562182575692 　
caster Hardware and building materials Plate Type Rubber Caster Plate-type rubber wheels YUEI Industrial Casters
¥2,370
¥2,370
Sale Sold out
Shipping calculated at checkout.

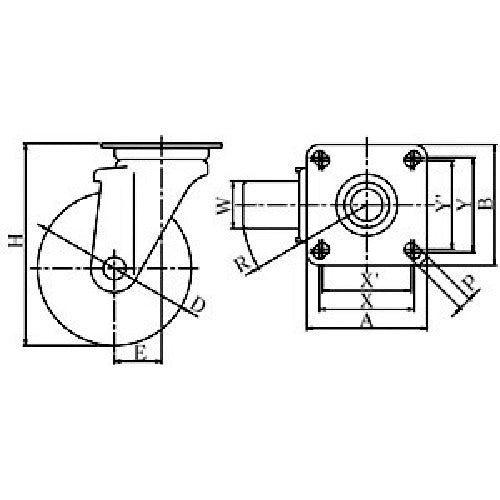

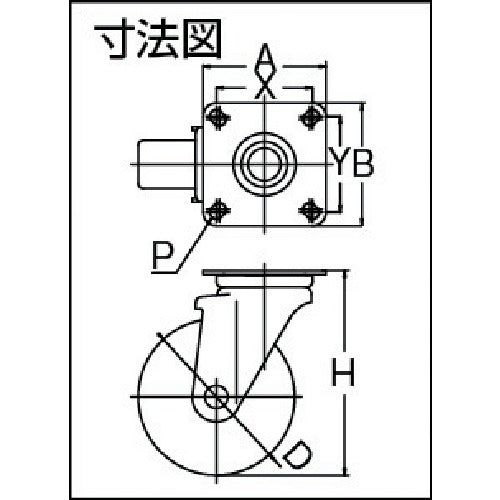

Catalogue number: WJ2-150 Features: ● The mounting pitch is the same for the free-mounting, free-mounting with stopper, and fixed types. ● Caster with standard specifications for basket carts. Applications: ● Ideal for trolleys and wagons. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-mounting ● Allowable load (daN): 180 ● Allowable load (kgf): 183.6 ● Wheel width (mm): 40 ● Mounting height H (mm): 190 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1800 ● Free-mounting ● Plate type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, rubber
