YUEI Plate-type Swivel Caster, Rubber, Wheel Diameter 150mm, PM Type, PMS Type (E46), Mounting Dimensions 94 x 94 (87 x 87), PMS-150WB-E46, 1 pc

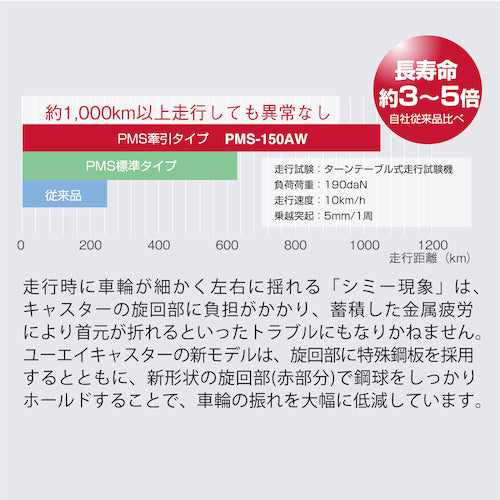

Catalog number: PMS-150WB-E46 Features: ● Unique design achieves a travel distance three times longer than YUEI's general casters. ● Light starting force for outstanding operability ● Starting load reduced by approximately 30% (compared to conventional products) Applications: ● For carts that require easy movement of heavy objects. Specifications: ● Wheel diameter D (mm): 150 ● Type: Free-swivel ● Allowable load (daN): 200 ● Allowable load (kgf): 204 ● Wheel width (mm): 40 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 120 ● Mounting seat B (mm): 120 ● Mounting pitch X (mm): 94 ● Mounting pitch Y (mm): 94 (87 ● Mounting hole diameter P (mm): 11 ● Boss width B (mm): 56 ● Mounting pitch X × Y (mm): 94 × 94 (87 × 87) ● Free-swivel ● Plate type Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheel, rubber Note: ● Free-swivel
