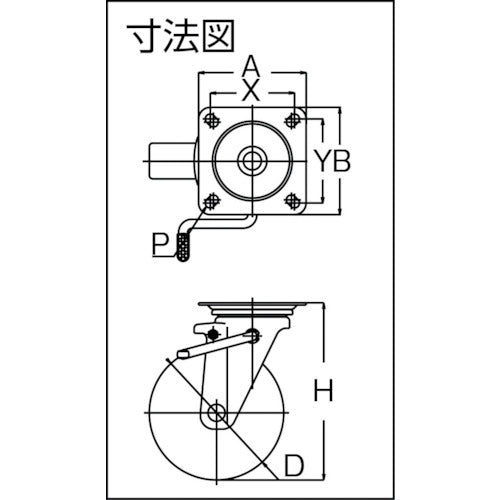

Catalogue number: PMS-200AWLB(R) Features: ● Highly durable caster designed for powered towing. ● Wheels made of rubber that is resistant to wear. ● Caster for towing carts. Applications: ● For carts that need to move heavy objects easily. Specifications: ● Wheel diameter D (mm): 200 ● Type: Swivel (with double stopper) ● Allowable load (daN): 300 ● Allowable load (kgf): 306 ● Wheel width (mm): 45 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 144 ● Mounting seat B (mm): 144 ● Mounting pitch X (mm): 105-120 ● Mounting pitch Y (mm): 105-120 ● Mounting hole diameter P (mm): 11.5 ● Plate type ● Swivel (with double stopper) ● Swivel part and wheels are locked at the same time Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Aluminum wheels, wear-resistant rubber
